MT1040A Network Test Solutions
The MT1040A supports various network interfaces, such as 10M to 400G Ethernet, OTN (OTU1 to OTU4), CPRI/OBSAI, etc. Recent network speed increases and diversification have increased the importance of on-site testing and network installation and maintenance. The test solutions supported by the MT1040A are introduced below.
400G Ethernet
400G Ethernet

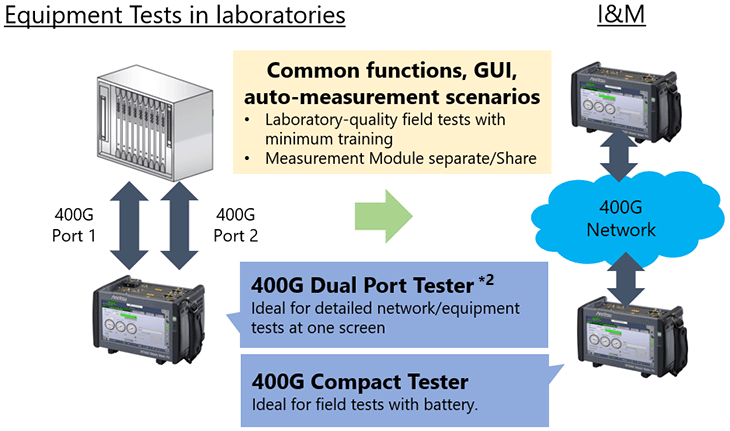

Unlike previous Ethernet services, 400G uses the PAM4 and FEC technologies to provide high speed at low cost. The MT1040A transport measurement function supports various network interfaces, including 10M to 400G Ethernet, OTN (OTU1 to OTU4), CPRI/OBSAI, etc.
Efficient Network Commissioning, Installation and Maintenance
- Evaluation and testing of 400G Ethernet Equipment
Introduction to Evaluation of 400G Ethernet Equipment - Importance of FEC Test and Measurement Procedure
Introduction to Importance of 400G Ethernet FEC Tests and Procedures using Tester MT1040A for Quantitative and Visual FEC Analysis - More efficient configuration and maintenance of data-center interconnects (DCI)
Introduces new issues at data-center configuration and maintenance as well as evaluation methods using MT1040A - On-site test automation
Introduces automation function for shortening job times and cutting technician work burden - More efficient remote and maintenance work
Introduces remote-operation function for controlling multiple MT1040A units at different sites from one location via cloud - Optical-fiber end-face analysis (VIP)
Introduces fiberscope for inspecting optical-fiber end-face condition to help assure communications quality
Optical Fiber & Installation
The compact, battery-powered and easy-to-use Anritsu MT1040A provides everything needed to install and maintain communication networks in a rugged, field portable package. This lightweight instrument simplifies the daunting task of collecting and interpreting data with an easy-to-use GUI and clear summaries allowing users of any skill level to operate the instrument to its full potential.
The MT1040A is multi-function tester that can be configured with an array of transport testing functions and OTDR modules to ensure you have the tools you need today plus the expandability for future technologies – all of which are field upgradeable.
- Verify proper fiber installation and fiber loss characteristics are within the specified budget
- Fiber Visualizer simplifies testing with an easy to read graphical summary of the results
- Ability to toggle between graphical summary and traditional OTDR trace
- Specialized testing modes simplify operation
- High resolution and dynamic range ensure quick and thorough fiber evaluation
- Intelligent analysis software identifies problem splices, connectors and even macrobends
- Test multiple wavelengths with a single unit
- One button PDF report generation
- Standard power meter and light source
- Visual fault locator option
- Verify fiber end face condition (dust, scratches) and cleanliness with optional connector inspection microscope
