There are many handheld OTDRs on the market that appear to be a good value until they are put into action and the user quickly finds out
that they lack the performance needed to install and maintain today’s networks.

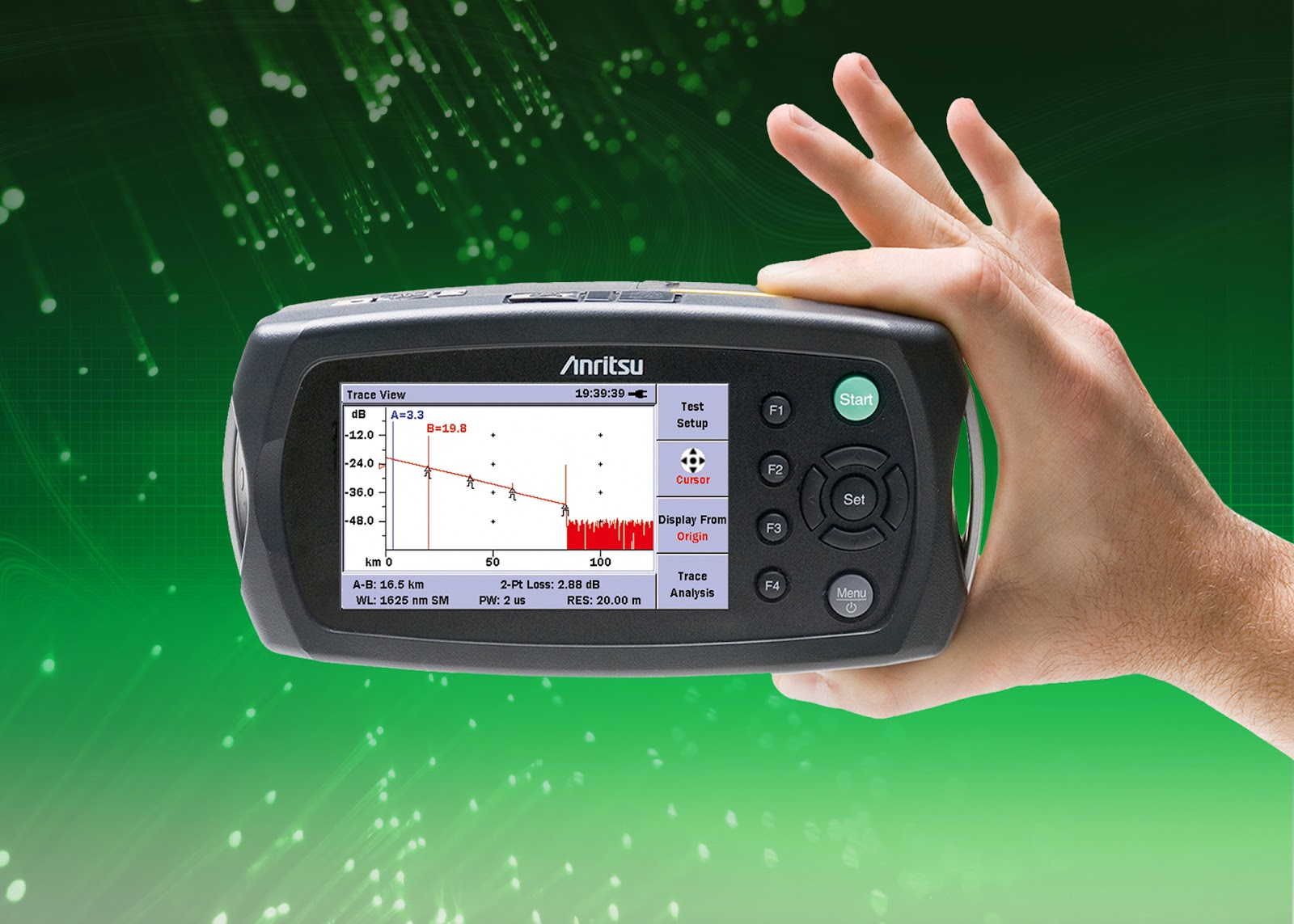

The new MU909014/15 μOTDR Module series for the MT9090A Network MasterTM platform from Anritsu finally addresses this need
by providing all of the features and performance required for installation and maintenance of optical fibers in a compact, modular test
set. The MT9090A represents an unmatched level of value and ease of use, while not compromising performance. Data sampling of 2
centimeters, dead zones of 0.8-meter and dynamic range up to 38 dB ensure accurate and complete fiber evaluation of any network
type – premise to access, metro to core...including PON-based FTTx networks featuring up to a 1 × 64 split.
The MT9090A with MU909014/15 module represents a new era in optical fiber testing!
Key Features
• Tri-wavelength OTDR for both installation and maintenance
(1310 nm/1550 nm plus filtered 1650 nm or 1625 nm)
• Built-in PON Power Meter, Loss Test Set and Light Source functions
• High-end OTDR performance in a pocket-size package with unique battery operation
• “Fiber Visualizer” mode simplifies operation, no OTDR knowledge needed
• Complete PON testing through splitters up to 1 × 64
• Bluetooth, Wi-Fi and Ethernet connectivity *
* : These features use an USB Ethernet converter, USB Wi-Fi dongle, or USB Bluetooth dongle.
