Overview

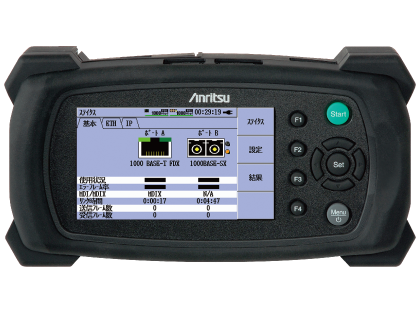

The Ethernet technology is widely deployed, and used for carrier class Ethernet and Mobile backhaul. Therefore easy testing of Ethernet links is very important. When outfitted with the Gigabit Ethernet Module, the very compact battery-powered, easy-to-use Anritsu Network Master is a comprehensive solution for Gigabit Ethernet testing and for installation and troubleshooting Ethernet communication lines. The instrument gives the user facilities for easy bandwidth verification, connectivity testing and service availability verification. The small size and low weight of the instrument makes it very easy to carry around for the field technician working with the Ethernet lines and despite the small size the instrument is equipped with a large display. The user can easily read and interpret information from the tested lines off the large color display with easy-to-understand colors and graphical symbols. And the graphical user interface makes it a simple task to configure and operate the instrument.
Key Features
• RJ45 and SFP optical interface are selectable for two ports
• Newly released ITU-T standard for End to End Ethernet testing
ITU-T Y.1564 testing, simultaneously testing of multiple traffic streams emulating real world networks
• Stacked VLAN (Q-in-Q), MPLS, IPv4, IPv6 supported
• Test Automator simplify operation and ensure proper set-up
• Ping, Traceroute, Ramp data generation, RFC 2544 testing
• Upstream/Downstream individual and simultaneous testing with end-to-end RFC 2544
• Service Disruption Time measurement for VoIP and IPTV
• Shorter testing time of multiple port networks by utilizing MT9090 ports
• Optical power level check and electrical cable test for physical layer testing
• In-band pass through and bidirectional monitoring using two ports
• Channel Stats for identifying error streams, top talkers, network attacks
• PDF and CSV report generation for documentation of test results
• Modular platform ensures maximum return on investment
• Compact and lightweight design for maximum portability in the field
