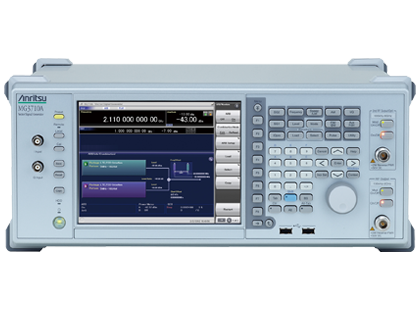

The MG3710A is a vector signal generator with 6-GHz upper frequency limit and 160-MHz ∗ /120-MHz wide RF modulation baseband generator. It outputs various radio systems signals for cellular communications, such as LTE FDD/TDD, W-CDMA, GSM as well as narrowband communications, such as WLAN, WiMAX, Bluetooth and GPS.
Cuts Equipment Costs
The dual waveform memory cuts equipment costs for tests, such as ACS, Blocking and IM, which require two modulation signal sources. The dual RF cuts MIMO equipment costs and reduces workloads for phase synchronization between equipment. It is important for tests using separate signals, such as MSR and multi-band.
Improves Yield
The excellent signal generator ACLR and SSB phase noise reduces the effect on wideband and narrow-band measurements to improve test margins and yields.
–71 dBc @W-CDMA, TestModel1, 64DPCH, 2 GHz
<–140 dBc/Hz (nom.) @100 MHz, 20 kHz offset, CW
Cuts Tact Time
The List/Sweep mode switches the frequency and level faster than 600 μs. Moreover, the 4-GB waveform memory upgrade can load many waveform patterns while instantaneous switching eliminates time wasted reloading waveform patterns.
