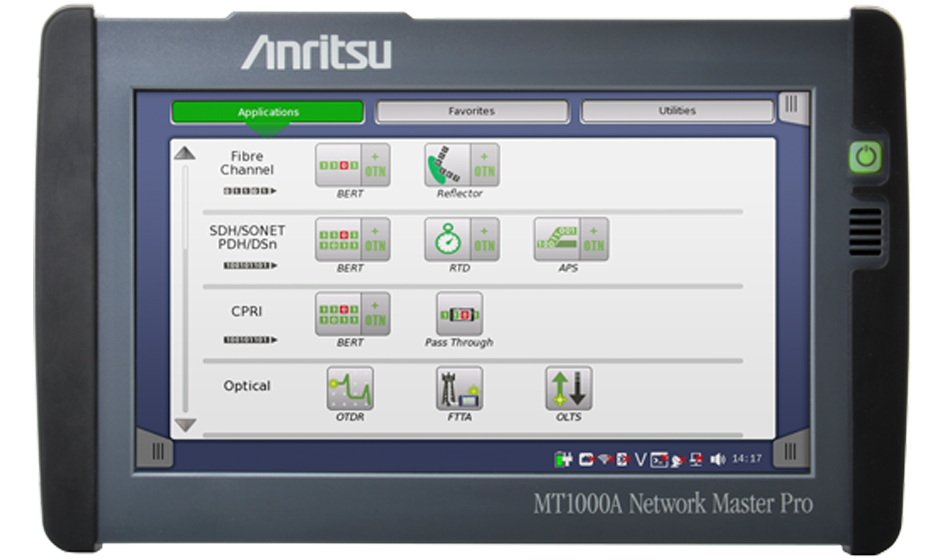

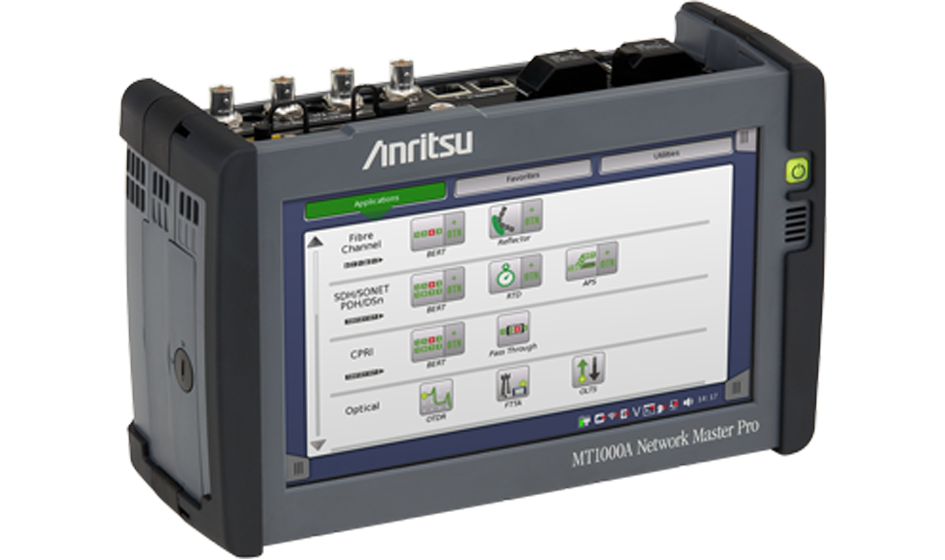

The MU100010A has the functions and performance required for installation and maintenance of
communications networks with speeds ranging from 1.5 Mbps to 10 Gbps. Moreover, since each
function is available as an option, supported functions can be customized and expanded according to
the work schedule, helping cut up-front deployment costs.
communications networks with speeds ranging from 1.5 Mbps to 10 Gbps. Moreover, since each
function is available as an option, supported functions can be customized and expanded according to
the work schedule, helping cut up-front deployment costs.
- - All-in-one Portable System
- -Supports CPRI/OBSAI, Ethernet, OTN, SDH/SONET, PDH/DSn, Fibre Channel
- - Mobile Fronthaul Commissioning and Inspection
- BER tests using CPRI/OBSAI interface, Error/Alarm tests, Return Delay Time tests, Link Status
checks, CPRI over OTN connection checks
- Mobile Backhaul Commissioning and Inspection
- Synchronous Ethernet (SyncE) ITU-T G.826x, PTP (IEEE 1588 v2) tests and analyses
- Commissioning and Troubleshooting Carrier Access Networks
- Ethernet tests up to 10 Gbps, including RFC 2544, RFC 6349, and Y.1564
- Frame Capture Function for fast troubleshooting
- Metro and Core Network Commissioning and Maintenance
- Supports OTN up to OTU2 and multistage mapping for fast easy testing of SDH/SONET and
PDH/DSn networks
- Full Multi-user Remote Operation using free MX100001A Software
- Independent ports for simultaneous multi-user access to one MT1000A
