MS2085A-MS2089A
Site Master Handheld Cable And Antenna Analyzer with Spectrum Analyzer and VNA Option
Site Master cable and antenna analyzer with spectrum analyzer and VNA option is the ideal instrument for installing, maintaining and troubleshooting RF communication systems up to 6 GHz
MS2085A
Cable and Antenna Analyzer
Cable and Antenna Analyzer
- 5 kHz to 4 GHz or 6 GHz
Vector Network Analyzer Option
- 5 kHz to 4 GHz or 6 GHz
MS2089A
Cable and Antenna Analyzer
Cable and Antenna Analyzer
- 5 kHz to 4 GHz or 6 GHz
Spectrum Analyzer
- 9 kHz to 4 GHz or 6 GHz
Vector Network Analyzer Option
- 5 kHz to 4 GHz or 6 GHz
The latest Generation Anritsu Site Master integrates cutting-edge technology, customer-driven innovation, and decades of expertise in test and measurement solutions. It seamlessly integrates cable and antenna analysis with spectrum analysis and VNA functionalities, offering a comprehensive testing solution for professionals in the wireless industries. From telecommunications and broadcasting to aerospace and defense, the Site Master cable and antenna analyzer with Integrated spectrum analyzer caters to a wide range of applications, including DAS, satellite monitoring, interference analysis, and installation and maintenance tasks.
Cable and Antenna Analyzer Highlights
The MS2085A is a 5 kHz to 4,6 GHz cable antenna analyzer that weighs less than 7 lbs. with an IK08 10-inch touch screen.
- Built-in PDF/HTML report generation
- Ability to add/edit/import and export a cable list from the instrument
- TDR measurements
- Sweep Speed: 350 µs / data point in fast sweep mode
- Data Points: 10,049
Spectrum and Interference Analyzer Highlights
The MS2089A comes in two configurations. The first configuration is a 5 kHz to 4 GHz cable antenna analyzer with a 9 kHz to 4 GHz spectrum analyzer. The second configuration is a 5 kHz to 6 GHz cable antenna analyzer with a 9 kHz to 6 GHz spectrum analyzer. The MS2089A weighs less than 8.5 lbs. and has the same IK08 10-inch touch screen.
- IQ capture/Streaming

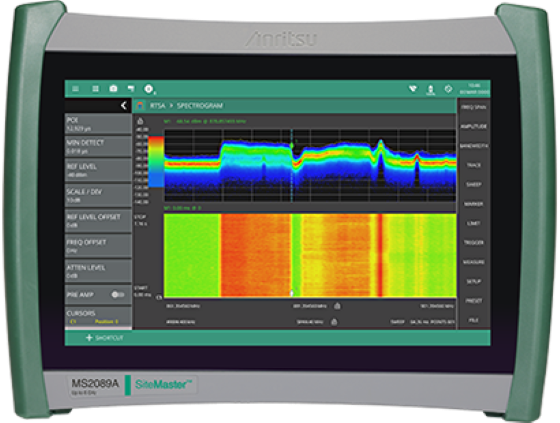

- Real-Time Spectrum Analyzer (RTSA)
- LTE FDD/TDD Analyzer
- 5GNR FR1 Analyzer
- Interference Analyzer
Vector Network Analyzer and Vector Voltmeter Highlights
The optional VNA and VVM add detailed analysis capability with performance previously only available in bench top instruments.
The optional VNA and VVM add detailed analysis capability with performance previously only available in bench top instruments.
- 2-Port 1 Path VNA to 4/6 GHz
- 380 us/point fast sweep speeds
- 100 dB dynamic range
- Default ReadyCal plus support for Mechanical and InstaCal user calibrations
- 16 display types including: Log Mag, VSWR, Phase, Smith Chart, Group Delay and Polar
